OUR PORTFOLIO

探索我们的产品业务

CELL

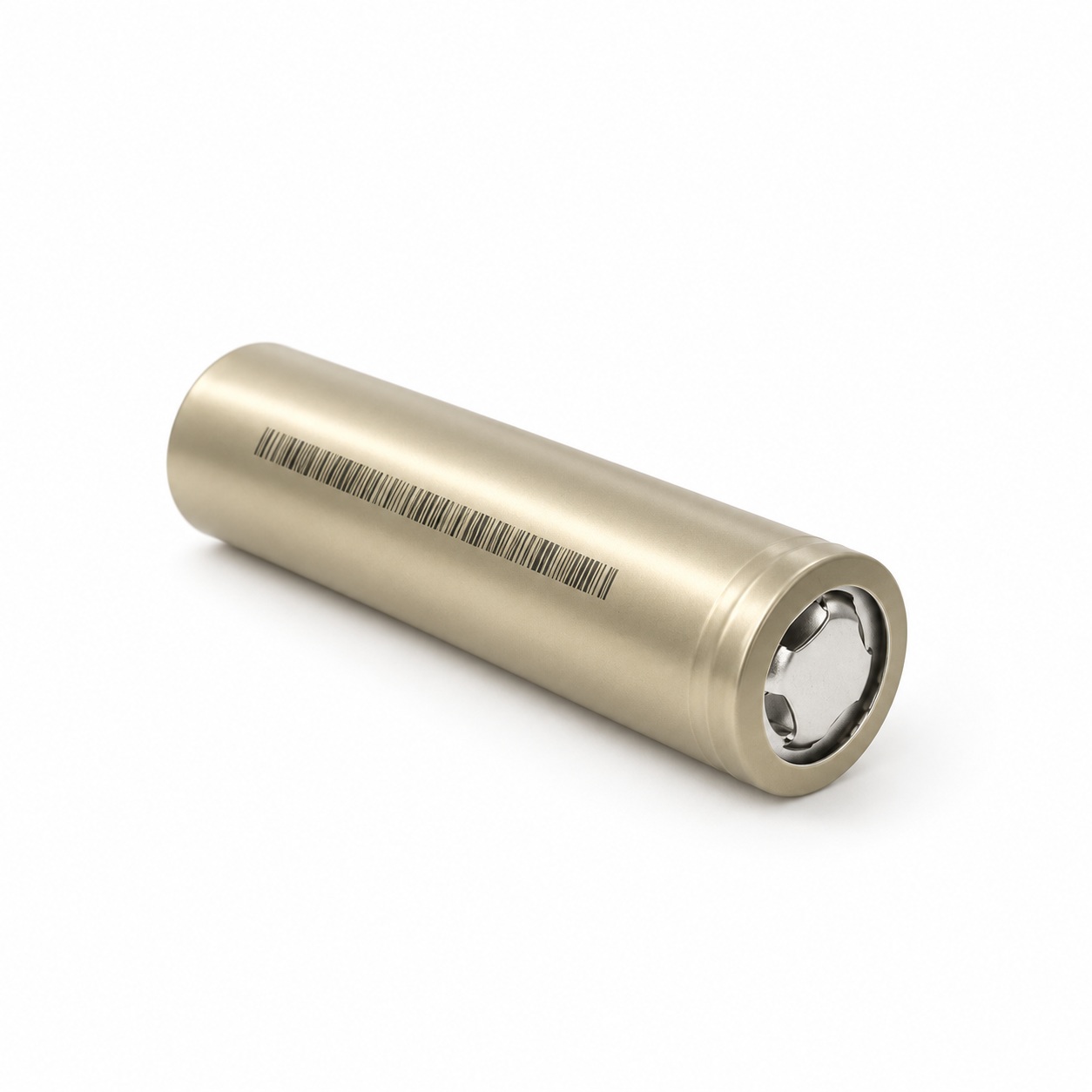

CYLINDRICAL LFP CELL

33140-15 Ah

15 AhNominal capacity

3.2 VNominal voltage

2.0CContinuous discharge

Ø 33.2 × 140 mm·295 g

Full specifications

33140-15 Ah specifications
Category	Battery Cell
Model No.	33140-15 Ah
Nominal Capacity	15 Ah
Dimensions (Diameter × Height)	33.2 × 140 mm
Chemistry	LFP
Nominal Voltage	3.2 V
Discharge Cut-off Voltage	2.5 V
Charge Cut-off Voltage	3.65 V
Continuous Discharge Rate	2.0C
Pulse Discharge Rate	3.0C
Charging Method	CC/CV
Charging Temperature	0 to 60 °C
Discharging Temperature	-30 to 60 °C
Cycle Life	≥3000 cycles
Approximate Weight	295 g

Download product image

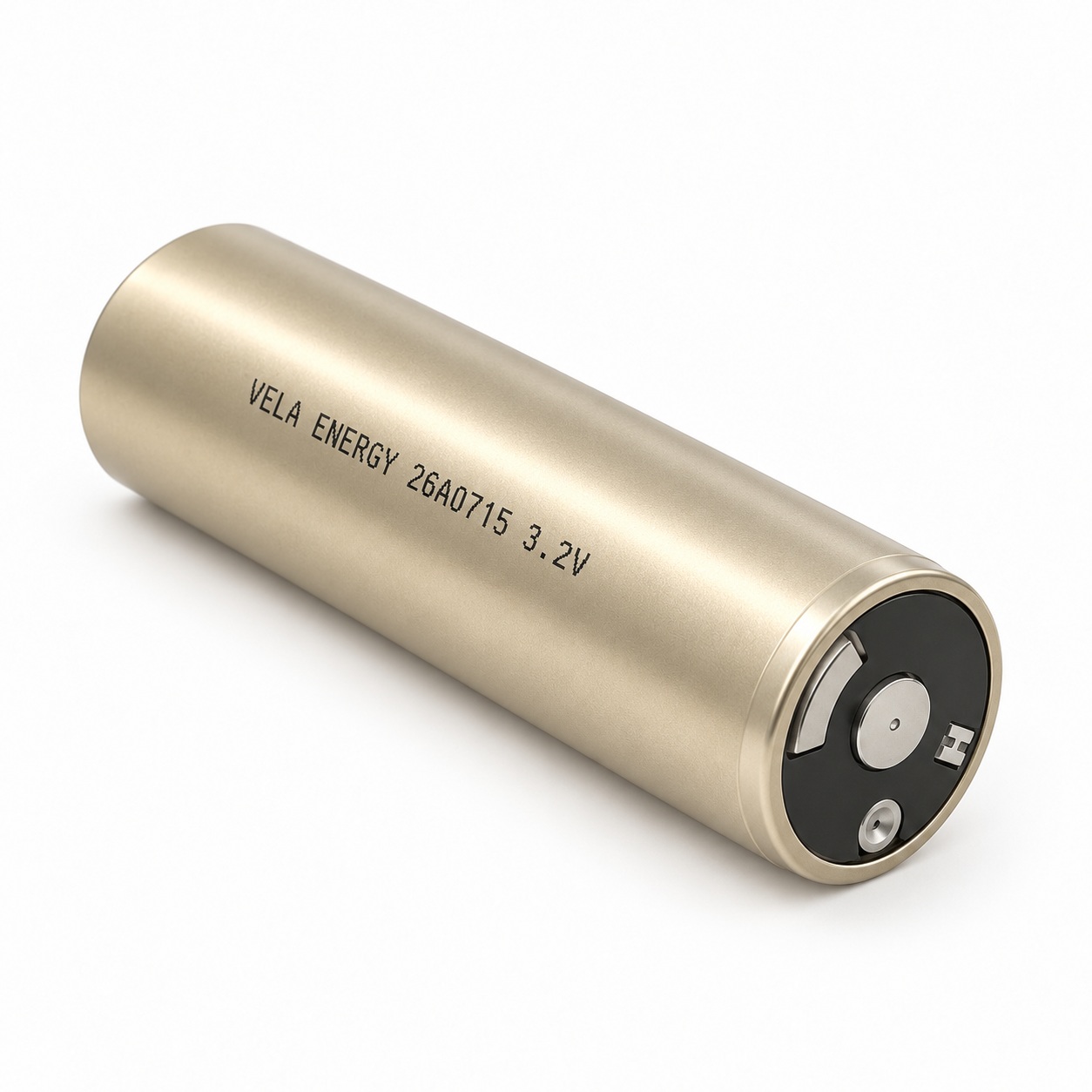

CYLINDRICAL LFP CELL

40135-20 Ah

20 AhNominal capacity

3.2 VNominal voltage

3.0CContinuous discharge

Ø 40.4 × 135.2 mm·365 g

Full specifications

40135-20 Ah specifications
Category	Battery Cell
Model No.	40135-20 Ah
Nominal Capacity	20 Ah
Dimensions (Diameter × Height)	40.4 × 135.2 mm
Chemistry	LFP
Nominal Voltage	3.2 V
Discharge Cut-off Voltage	2.5 V
Charge Cut-off Voltage	3.65 V
Continuous Discharge Rate	3.0C
Pulse Discharge Rate	5.0C
Charging Method	CC/CV
Charging Temperature	0 to 60 °C
Discharging Temperature	-30 to 60 °C
Cycle Life	≥3000 cycles
Approximate Weight	365 g

Download product image

BATTERY PACK

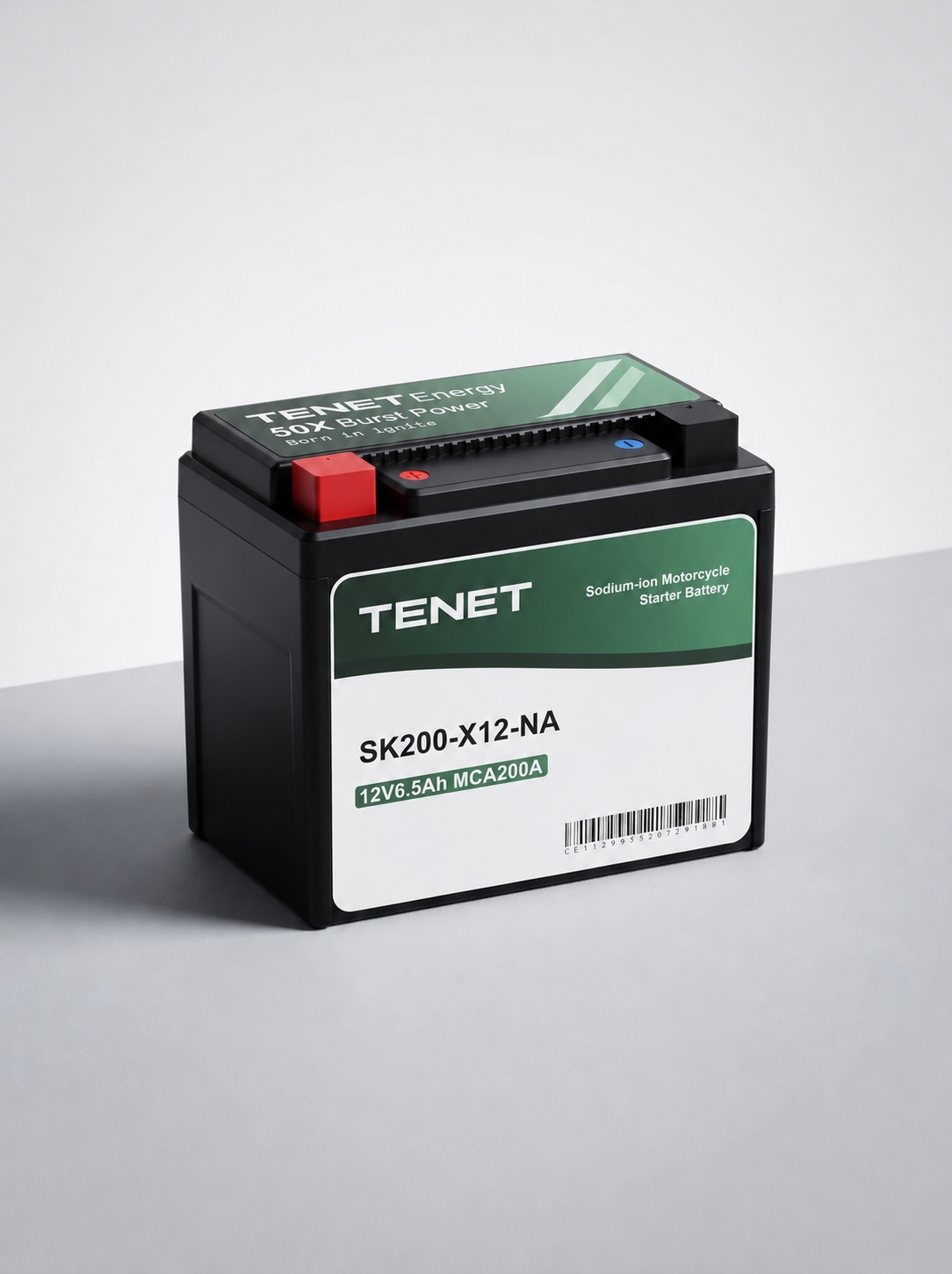

STARTER BATTERY · SODIUM-ION

TENET X12

SK200-SK12-NA

12 VNominal voltage

6.5 AhNominal capacity

360 APeak current

149 × 86 × 130 mm·1.06 kg

Full specifications

TENET X12 specifications
Category	Starter Battery
Model No.	TENET X12 (SK200-SK12-NA)
Nominal Voltage	12 V
Nominal Capacity	6.5 Ah
Configuration	4S2P
Chemistry	Sodium-ion
IP Rating	IP67
Charging Temperature	-20 to 60 °C
Discharging Temperature	-40 to 60 °C
Peak Current Rating	360 A
Cycle Life	3000
Weight	1.06 kg
Dimensions (L × W × H)	149 × 86 × 130 mm

Download product image

TRACTION PACK · LFP

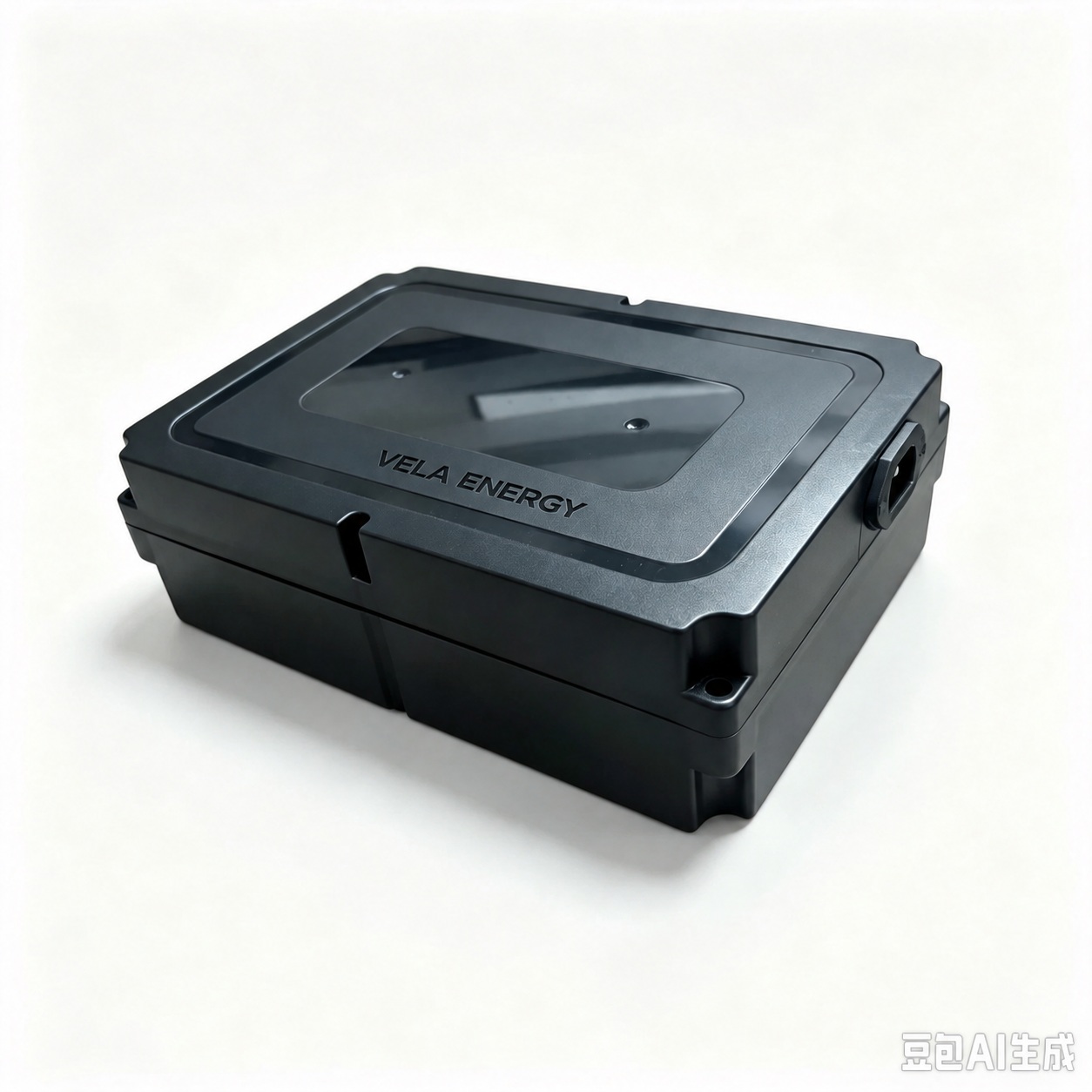

NEO S1

VA661-4815

48 VNominal voltage

15 AhNominal capacity

2CContinuous discharge

294 × 194 × 82 mm·6 kg

Full specifications

NEO S1 specifications
Category	Traction Pack
Model No.	NEO S1 (VA661-4815)
Nominal Voltage	48 V
Nominal Capacity	15 Ah
Configuration	15S1P
Chemistry	LFP
IP Rating	IP67
Charging Temperature	0 to 60 °C
Discharging Temperature	-20 to 60 °C
Max. Continuous Charge Rate	1C
Max. Continuous Discharge Rate	2C
Cycle Life	3000
Weight	6 kg
Dimensions (L × W × H)	294 × 194 × 82 mm

Download product image

TRACTION PACK · LFP

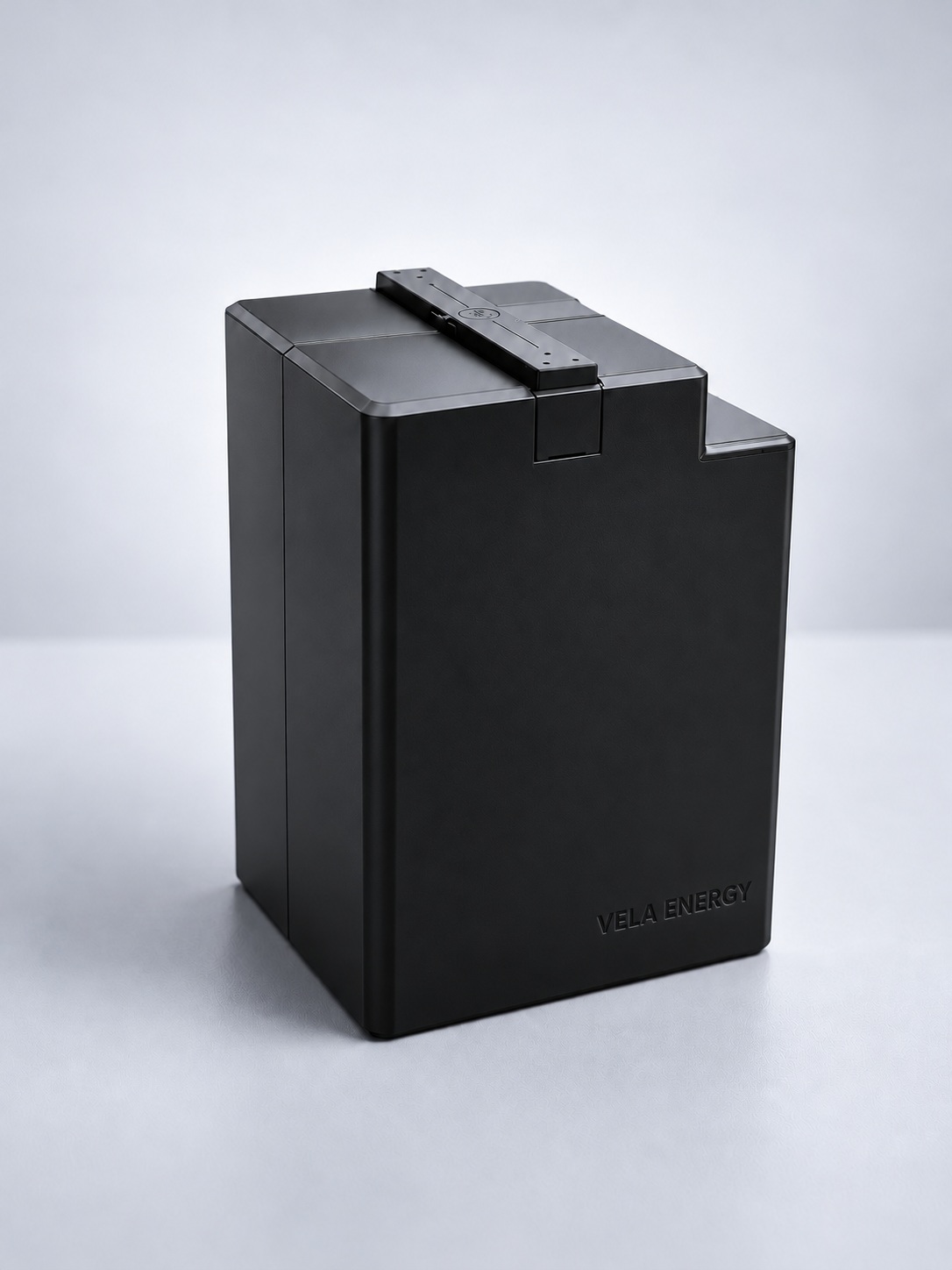

NEO S3

VA681-4830

48 VNominal voltage

30 AhNominal capacity

2CContinuous discharge

184 × 156 × 265 mm·10.5 kg

Full specifications

NEO S3 specifications
Category	Traction Pack
Model No.	NEO S3 (VA681-4830)
Nominal Voltage	48 V
Nominal Capacity	30 Ah
Configuration	15S2P
Chemistry	LFP
IP Rating	IP67
Charging Temperature	0 to 60 °C
Discharging Temperature	-20 to 60 °C
Max. Continuous Charge Rate	1C
Max. Continuous Discharge Rate	2C
Cycle Life	3000
Weight	10.5 kg
Dimensions (L × W × H)	184 × 156 × 265 mm

Download product image

TRACTION PACK · LFP

RANGER M1

VA761-6020

60.8 VNominal voltage

20 AhNominal capacity

3CContinuous discharge

184 × 156 × 265 mm·9.5 kg

Full specifications

RANGER M1 specifications
Category	Traction Pack
Model No.	RANGER M1 (VA761-6020)
Nominal Voltage	60.8 V
Nominal Capacity	20 Ah
Configuration	19S1P
Chemistry	LFP
IP Rating	IP67
Charging Temperature	0 to 60 °C
Discharging Temperature	-20 to 60 °C
Max. Continuous Charge Rate	1C
Max. Continuous Discharge Rate	3C
Cycle Life	3000
Weight	9.5 kg
Dimensions (L × W × H)	184 × 156 × 265 mm

Download product image

TRACTION PACK · LFP

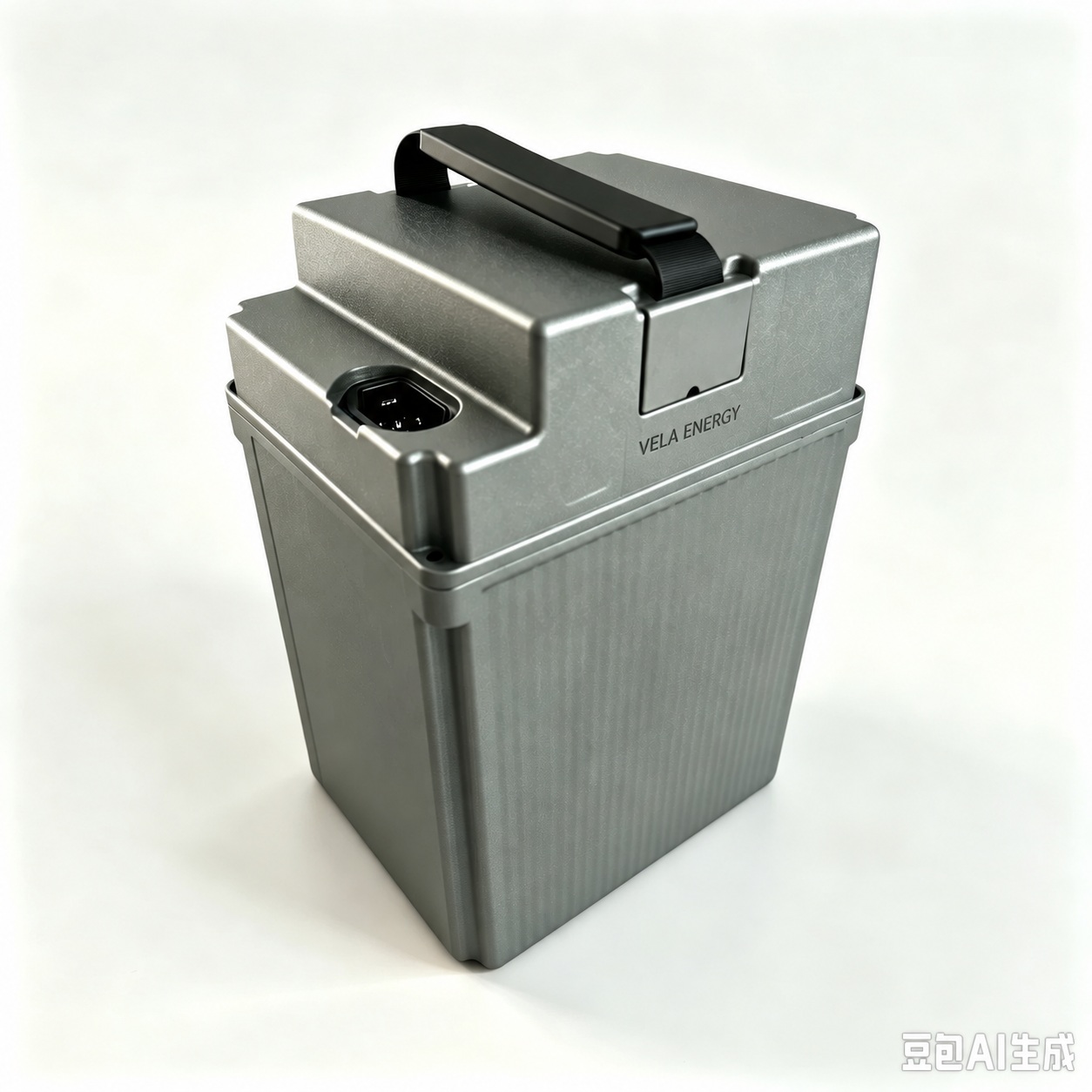

RANGER M2

VA771-6030

60.8 VNominal voltage

30 AhNominal capacity

2CContinuous discharge

184 × 156 × 265 mm·13.5 kg

Full specifications

RANGER M2 specifications
Category	Traction Pack
Model No.	RANGER M2 (VA771-6030)
Nominal Voltage	60.8 V
Nominal Capacity	30 Ah
Configuration	19S2P
Chemistry	LFP
IP Rating	IP67
Charging Temperature	0 to 60 °C
Discharging Temperature	-20 to 60 °C
Max. Continuous Charge Rate	1C
Max. Continuous Discharge Rate	2C
Cycle Life	3000
Weight	13.5 kg
Dimensions (L × W × H)	184 × 156 × 265 mm

Download product image

TRACTION PACK · LFP

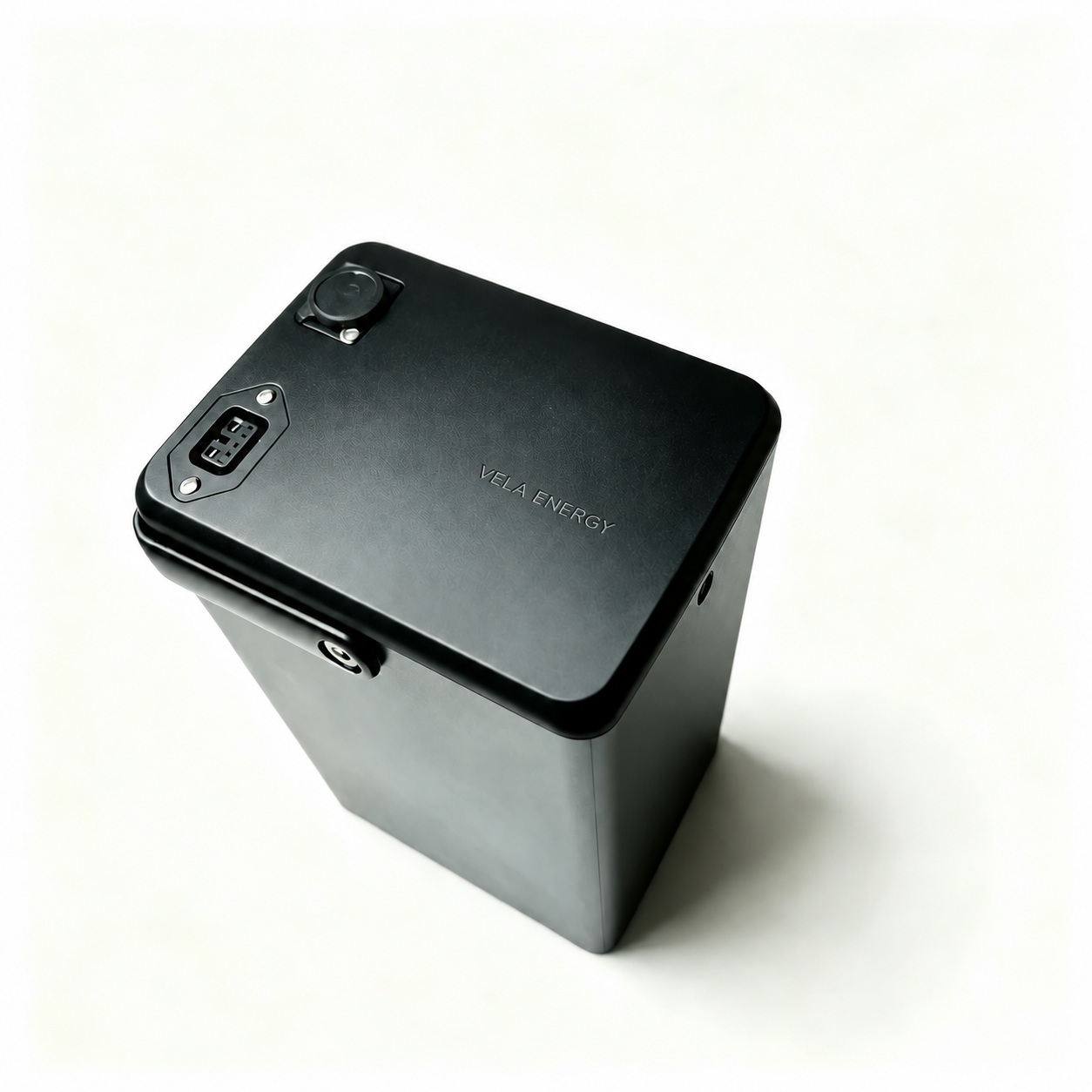

Cannon G1

VA861-7620

76.8 VNominal voltage

20 AhNominal capacity

3CContinuous discharge

184 × 156 × 320 mm·11.5 kg

Full specifications

Cannon G1 specifications
Category	Traction Pack
Model No.	Cannon G1 (VA861-7620)
Nominal Voltage	76.8 V
Nominal Capacity	20 Ah
Configuration	24S1P
Chemistry	LFP
IP Rating	IP67
Charging Temperature	0 to 60 °C
Discharging Temperature	-20 to 60 °C
Max. Continuous Charge Rate	1C
Max. Continuous Discharge Rate	3C
Cycle Life	3000
Weight	11.5 kg
Dimensions (L × W × H)	184 × 156 × 320 mm

Download product image

TRACTION PACK · LFP

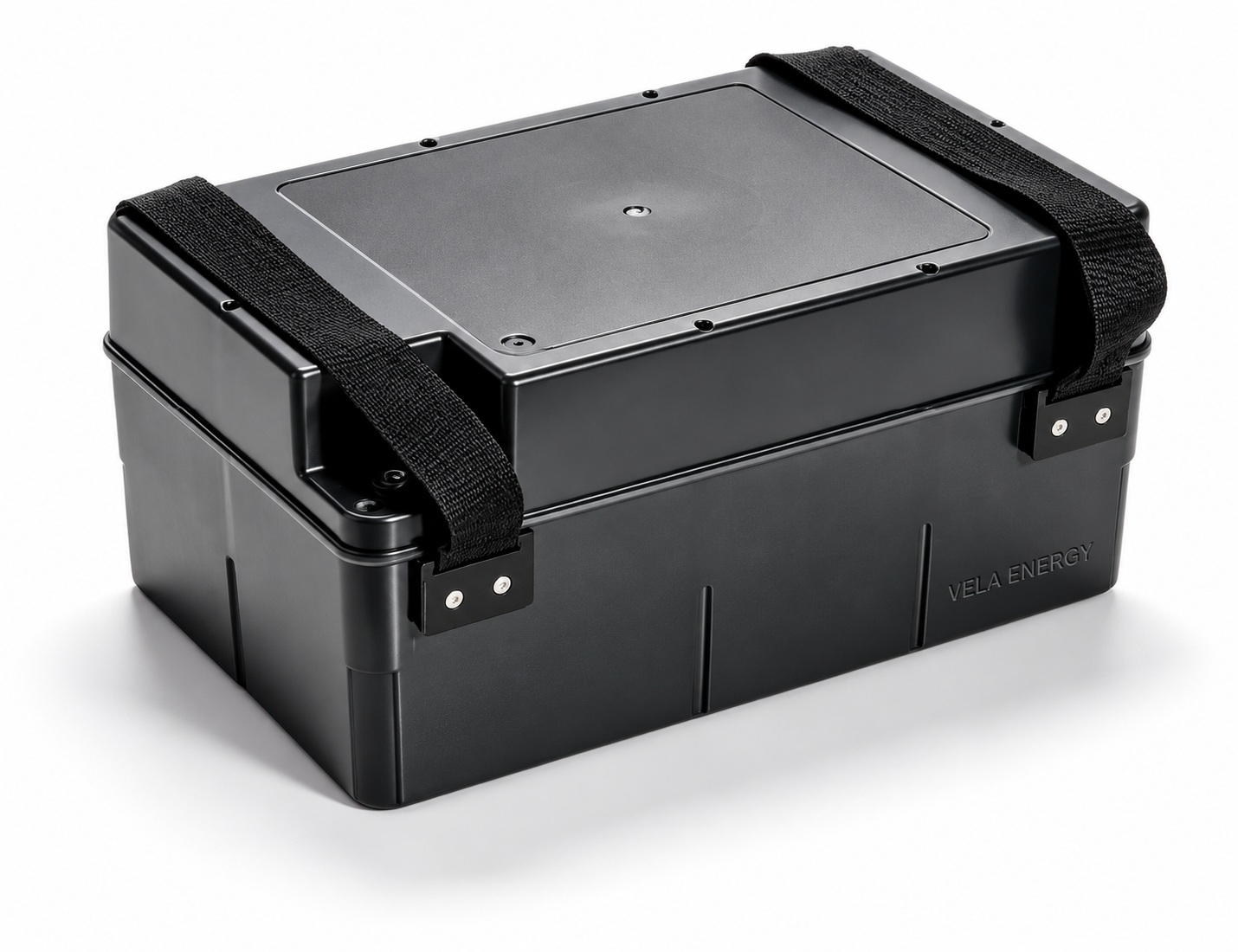

Cannon G2

VA871-7630

76.8 VNominal voltage

30 AhNominal capacity

2CContinuous discharge

348 × 227 × 175 mm·16.5 kg

Full specifications

Cannon G2 specifications
Category	Traction Pack
Model No.	Cannon G2 (VA871-7630)
Nominal Voltage	76.8 V
Nominal Capacity	30 Ah
Configuration	24S2P
Chemistry	LFP
IP Rating	IP67
Charging Temperature	0 to 60 °C
Discharging Temperature	-20 to 60 °C
Max. Continuous Charge Rate	1C
Max. Continuous Discharge Rate	2C
Cycle Life	3000
Weight	16.5 kg
Dimensions (L × W × H)	348 × 227 × 175 mm

Download product image

TRACTION PACK · LFP

Cannon G3

VA881-7645

76.8 VNominal voltage

45 AhNominal capacity

2CContinuous discharge

348 × 227 × 175 mm·23.8 kg

Full specifications

Cannon G3 specifications
Category	Traction Pack
Model No.	Cannon G3 (VA881-7645)
Nominal Voltage	76.8 V
Nominal Capacity	45 Ah
Configuration	24S3P
Chemistry	LFP
IP Rating	IP67
Charging Temperature	0 to 60 °C
Discharging Temperature	-20 to 60 °C
Max. Continuous Charge Rate	1C
Max. Continuous Discharge Rate	2C
Cycle Life	3000
Weight	23.8 kg
Dimensions (L × W × H)	348 × 227 × 175 mm

Download product image

TRACTION PACK · LFP

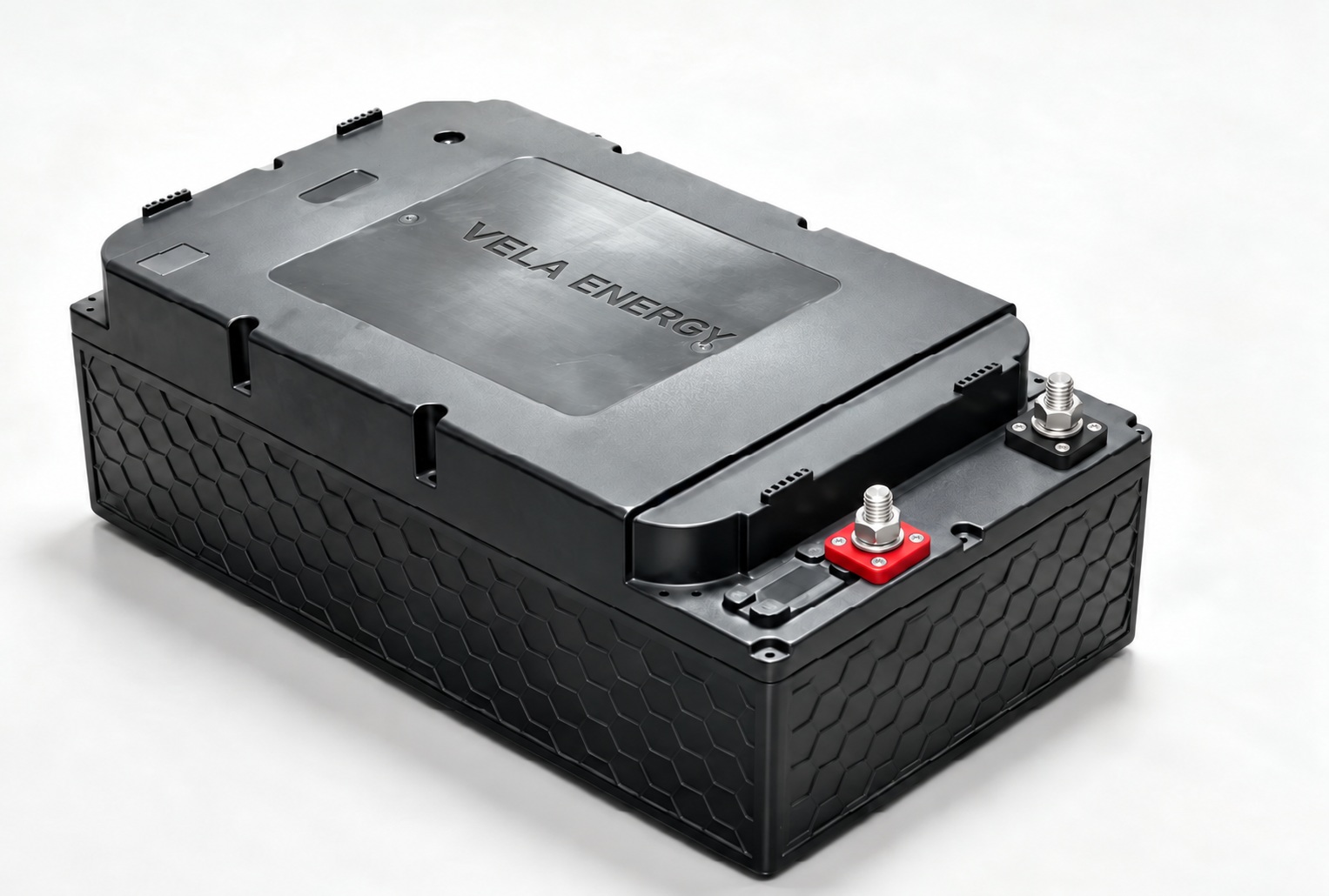

Cannon G6

VA895-76100

76.8 VNominal voltage

100 AhNominal capacity

1.5CContinuous discharge

650 × 348 × 195 mm·52.8 kg

Full specifications

Cannon G6 specifications
Category	Traction Pack
Model No.	Cannon G6 (VA895-76100)
Nominal Voltage	76.8 V
Nominal Capacity	100 Ah
Configuration	24S1P
Chemistry	LFP
IP Rating	IP65
Charging Temperature	0 to 60 °C
Discharging Temperature	-20 to 60 °C
Max. Continuous Charge Rate	0.5C
Max. Continuous Discharge Rate	1.5C
Cycle Life	2000
Weight	52.8 kg
Dimensions (L × W × H)	650 × 348 × 195 mm

Download product image

SCOOTER

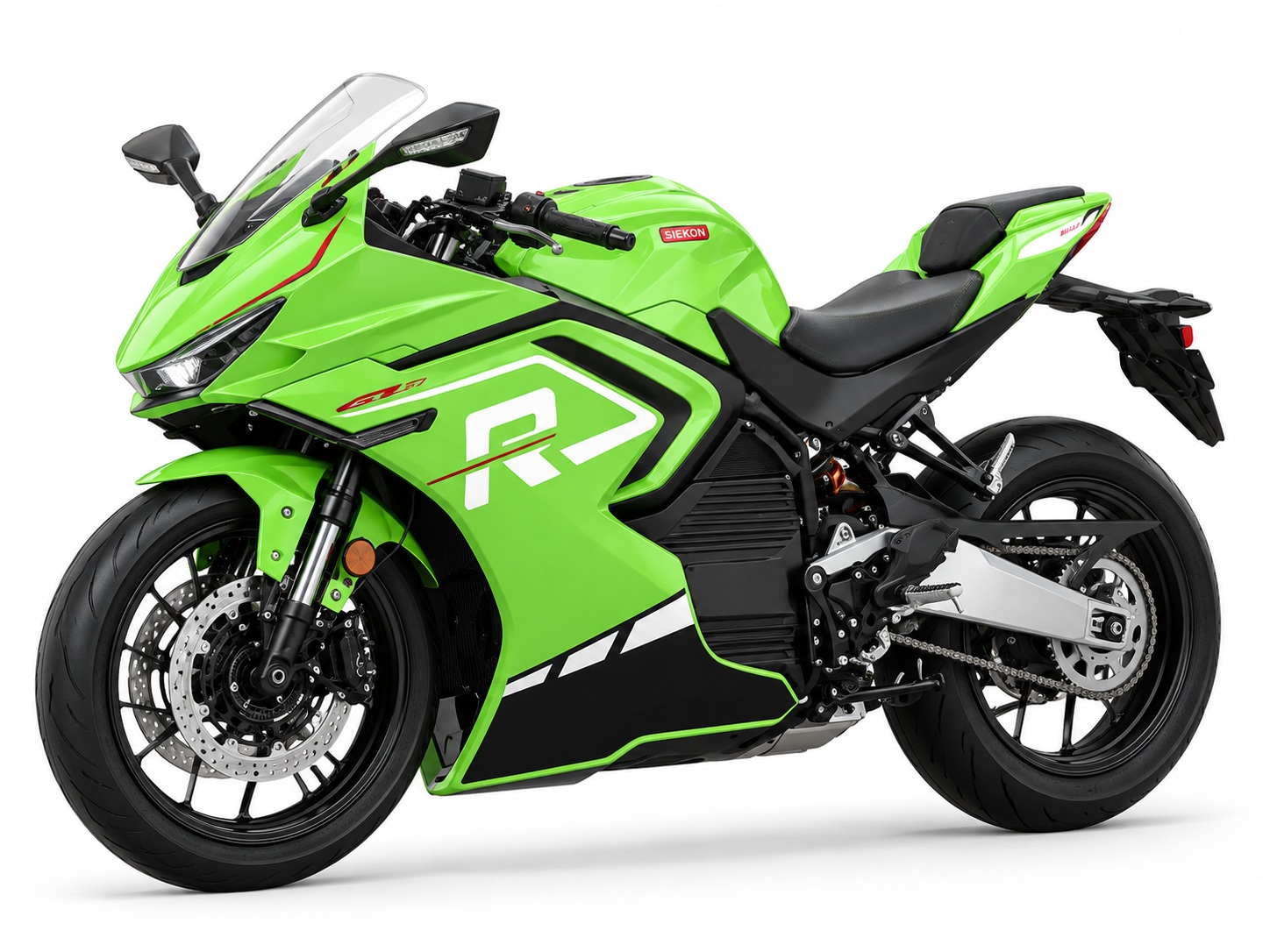

ELECTRIC MOTORCYCLE · Neon Vert

ELT

30 kWPeak power

165 km/hTop speed

120 kmRange

2075×850×1150 mm·205 kg

Full specifications

ELT specifications
Dimensions (L × W × H)	2075×850×1150 mm
Wheelbase	1420 mm
Rated Power / Peak Power	12000 W / 30000 W
Battery Capacity	144 V 73 Ah
Top Speed	Up to 165 km/h
Range	Up to 120 km @ 80 km/h constant speed
Brakes (Front / Rear)	Dual hydraulic disc brake / Hydraulic disc brake
Tires (Front / Rear)	120-60-17 Tubeless / 150-60-17 Tubeless
Curb Weight	205 kg
Maximum Load Capacity	150 kg
Charging Time	3-4 h
Safety Features	CBS, ABS
Suspension (Front / Rear)	dual hydraulic telescopic fork / single spring shock

Download product image

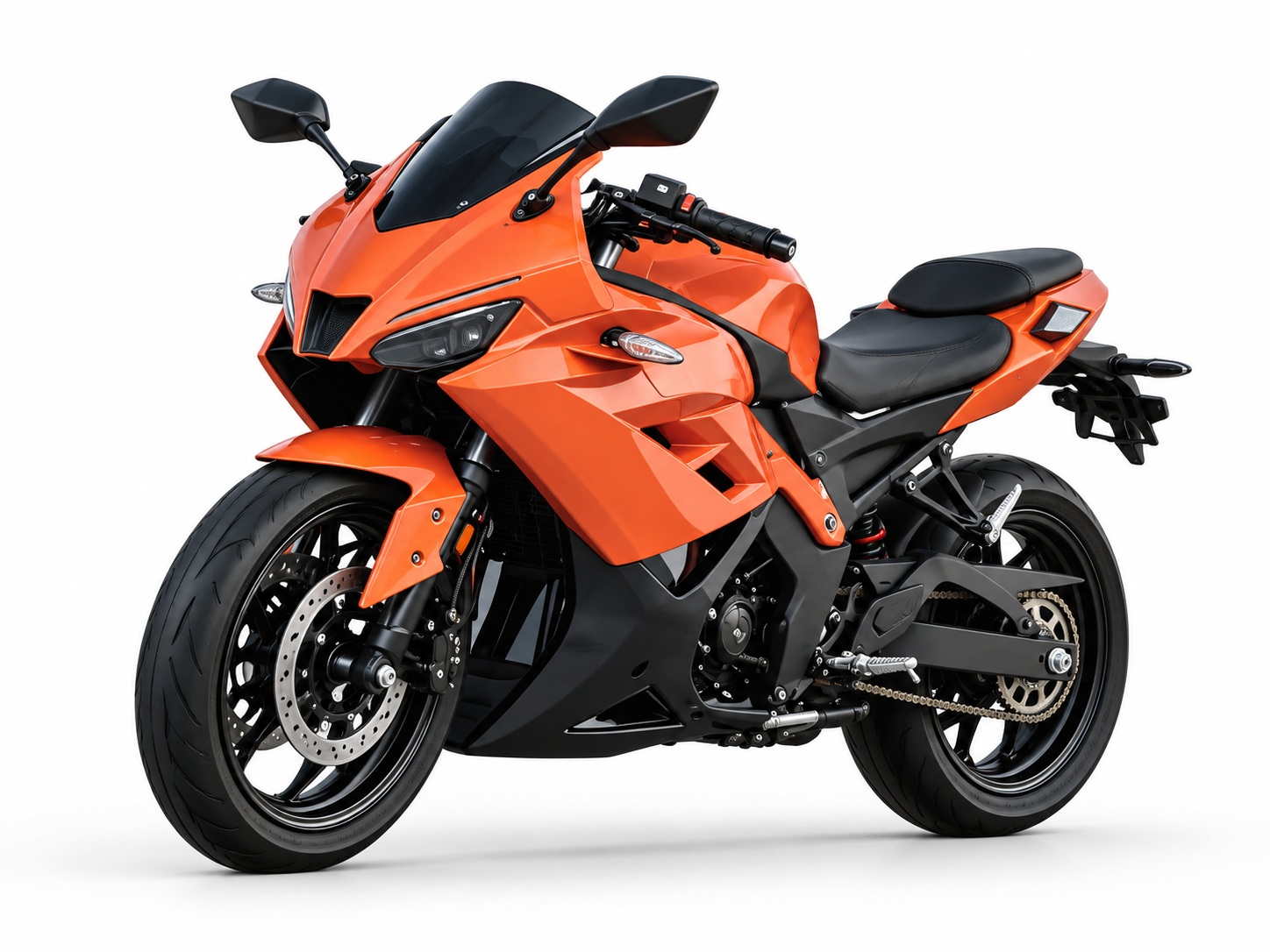

ELECTRIC MOTORCYCLE · Lava Orange

SPECTRE GEN 3

15 kWPeak power

130 km/hTop speed

100 kmRange

Full specifications

SPECTRE GEN 3 specifications
Battery Capacity	Ternary Lithium Battery 72 V (32-120) Ah
Motor Specification	5 kW 72 V Mid-Drive Moto; 3 kW 72 V Hub Motor
Range	100 km @ 55 km/h
Charging Time	4-8 h
Tires (Front / Rear)	110/70-17 front, 140/70-17 rear (200/55-17)
Speed	85 km/h; 130 km/h
Brakes	F&R: Disc Brake
Display	LCD
Load Capacity	250 kg

Download product image

ELECTRIC MOTORCYCLE · Red and White with Green Accents

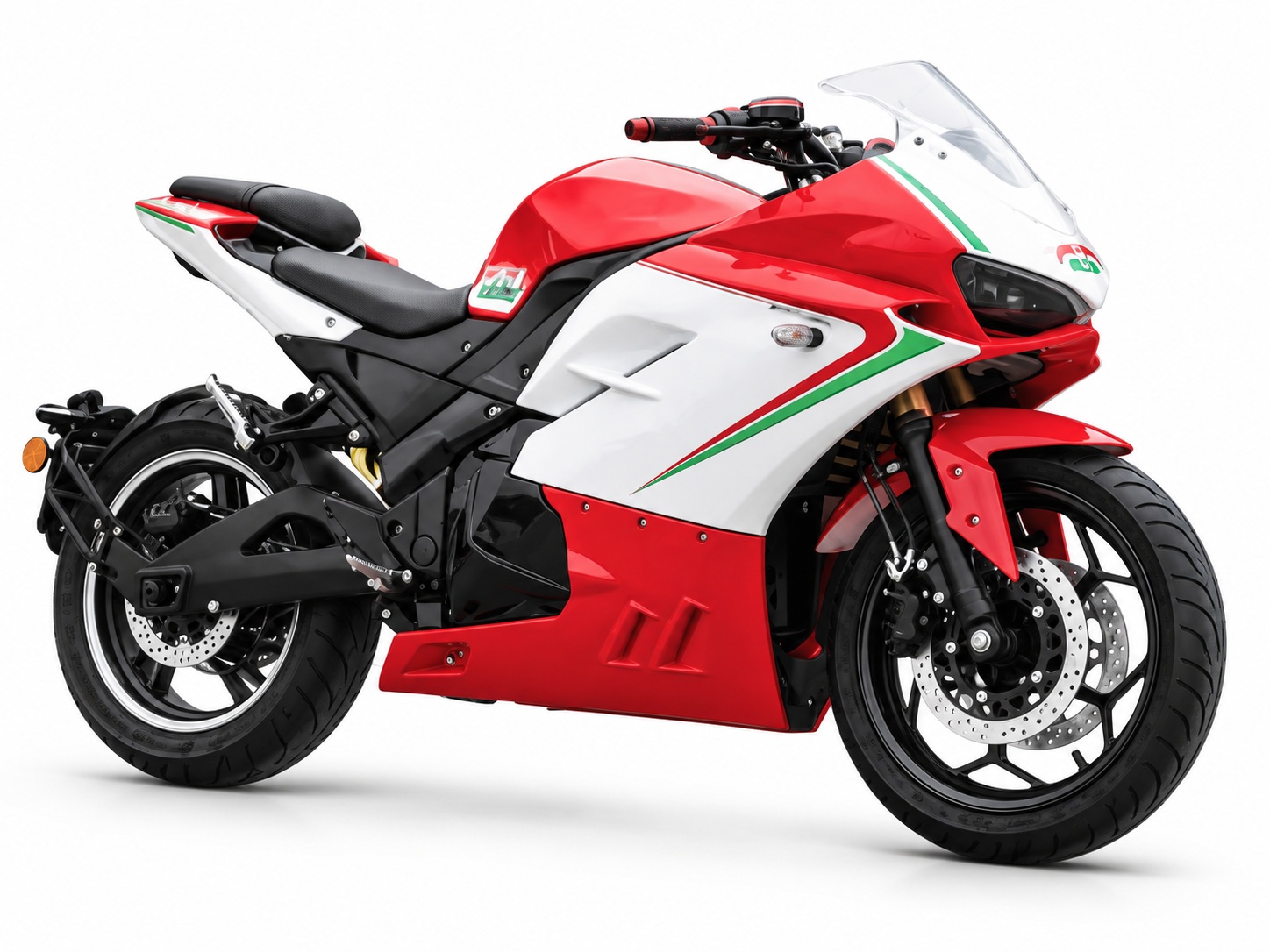

JARON

15 kWPeak power

130 km/hTop speed

100 kmRange

Full specifications

JARON specifications
Battery Specification	Ternary Lithium Battery 72 V (32-120) Ah
Motor Specification	5 kW 72 V Mid-Drive Moto; 3 kW 72 V Hub Motor
Range	100 km @ 55 km/h
Charging Time	4-8 h
Tires (Front / Rear)	110/70-17 front, 140/70-17 rear (200/55-17)
Speed	85 km/h; 130 km/h
Brakes	F&R: Disc Brake
Display	LCD
Load Capacity	250 kg

Download product image

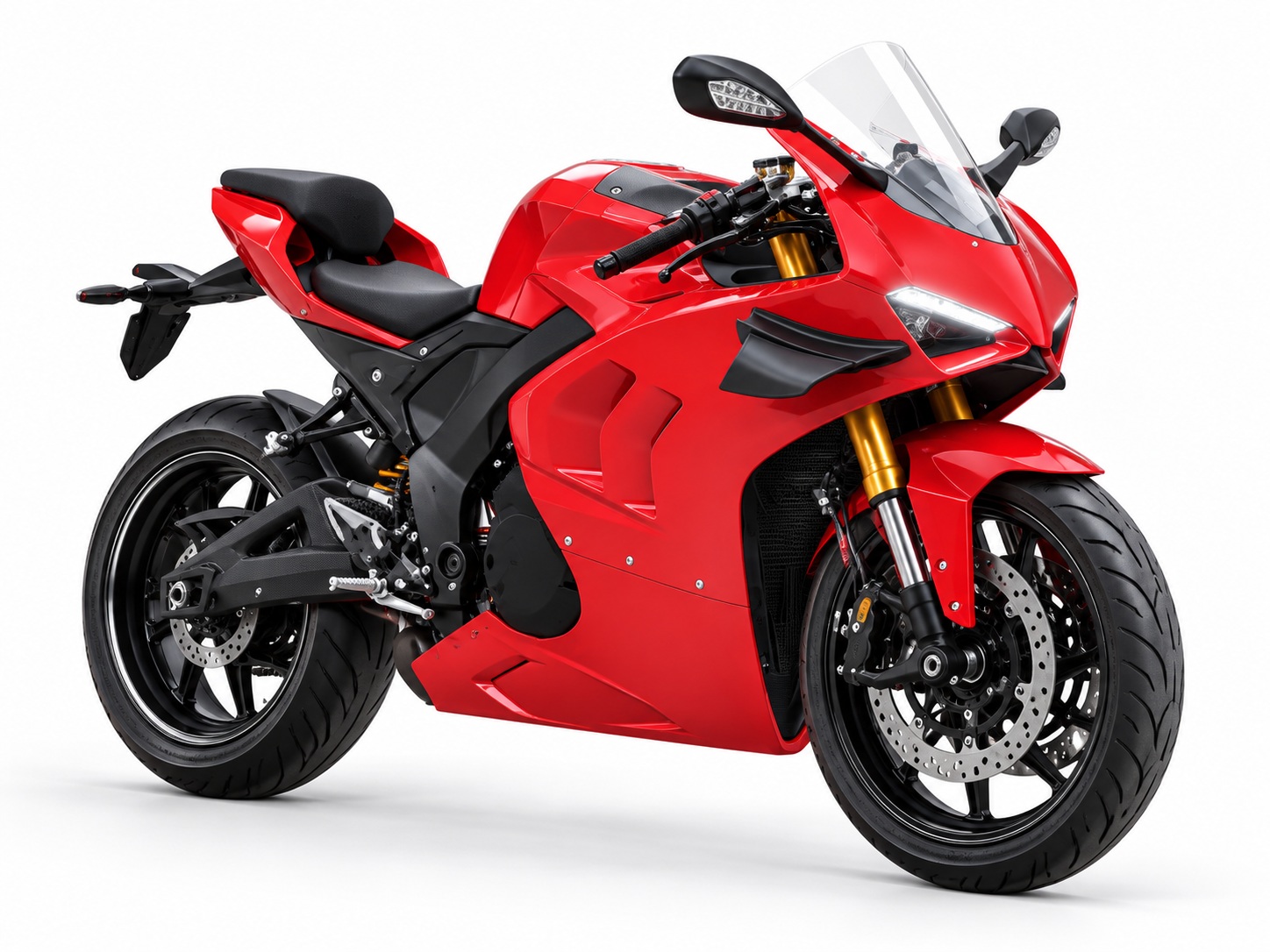

ELECTRIC MOTORCYCLE · Rosso Red

V4S

15 kWPeak power

130 km/hTop speed

100 kmRange

Full specifications

V4S specifications
Battery Capacity	Ternary Lithium Battery 72 V (32-120) Ah
Motor Specification	5 kW 72 V Mid-Drive Moto; 3 kW 72 V Hub Motor
Range	100 km @ 55 km/h
Charging Time	4-8 h
Tires (Front / Rear)	110/70-17 front, 140/70-17 rear (200/55-17)
Speed	85 km/h; 130 km/h
Brakes	F&R: Disc Brake
Display	LCD
Load Capacity	250 kg

Download product image

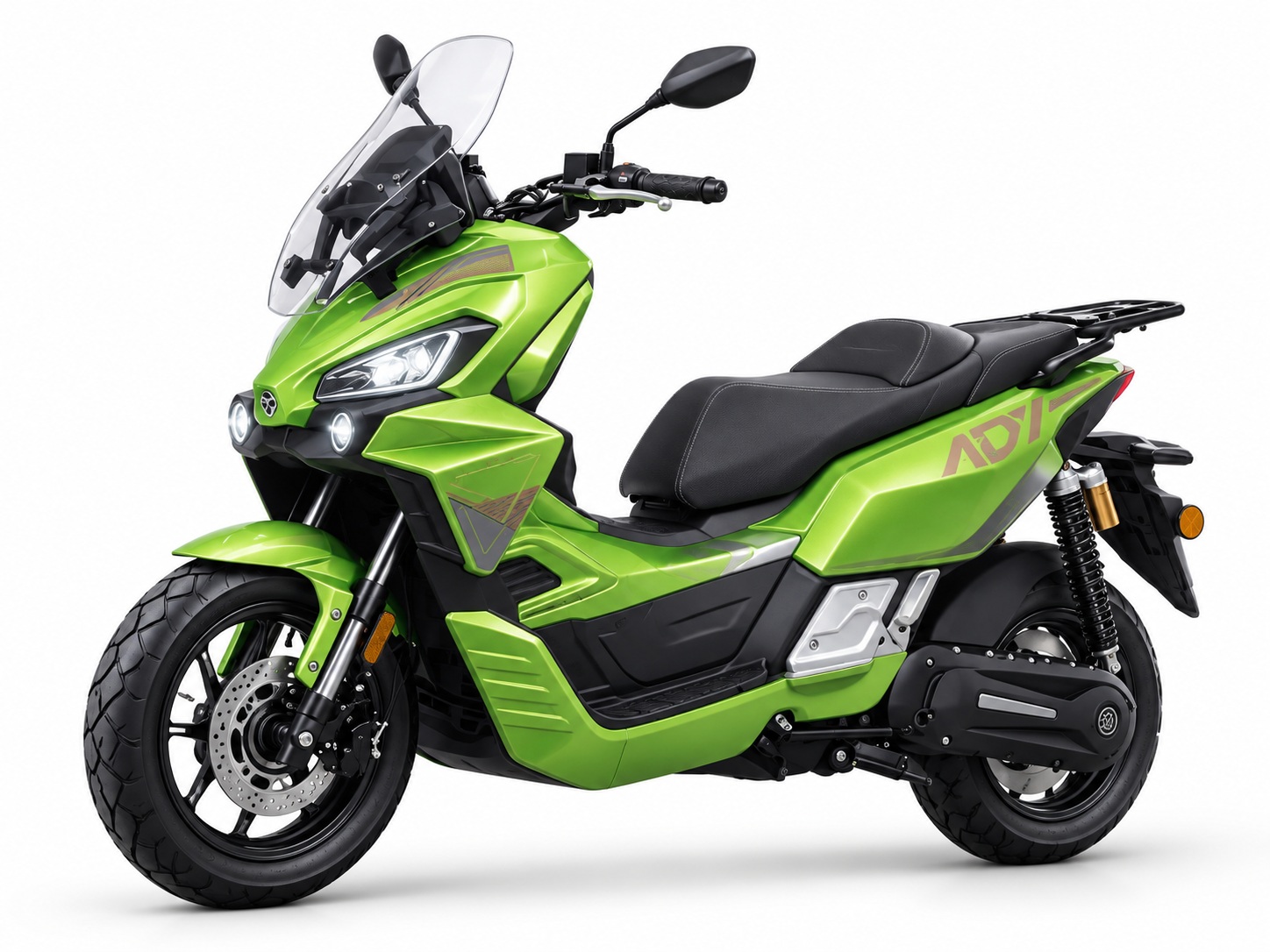

ELECTRIC MOTORCYCLE · Wildfield Green

ADV

12 kWPeak power

120 km/hTop speed

120 kmRange

2100×780×1195 mm·158 kg

Full specifications

ADV specifications
Dimensions (L × W × H)	2100×780×1195 mm
Wheelbase	1560 mm
Rated Power	6000 W / 7000 W
Battery Capacity	72 V 60 Ah / 72 V 45 Ah ×2 / 72 V 115 Ah / 72 V 150 Ah
Top Speed	95 km/h / 110 km/h / 120 km/h
Range	120 km / 170 km / 220 km
Brakes (Front / Rear)	Large disc hydraulic disc brake / Hydraulic disc brake
Tires (Front / Rear)	14 inch
Curb Weight	158 kg
Maximum Load Capacity	150 kg
Charging Time	3-5 h
Safety Features	CBS (standard); ABS (standard)
Suspension (Front / Rear)	Front hydraulic telescopic fork, rear dual spring shock

Download product image

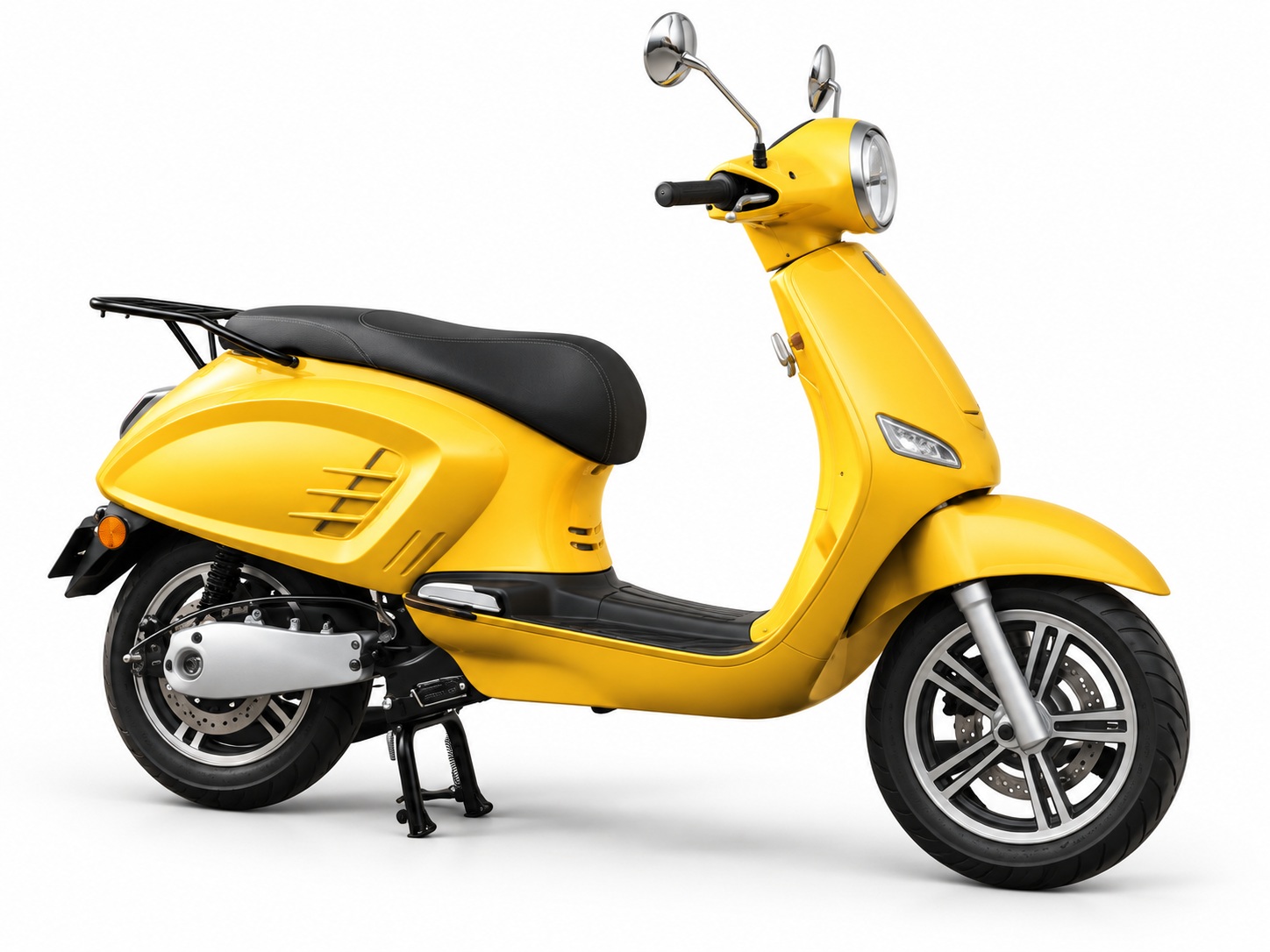

ELECTRIC MOTORCYCLE · Yellow

VISCOT

6 kWPeak power

80 km/hTop speed

80 kmRange

1960×880×1260 mm·112 kg

Full specifications

VISCOT specifications
Dimensions (L × W × H)	1960×880×1260 mm
Wheelbase	1380 mm
Curb Weight	112 kg
Maximum Load Capacity	150 kg
Rated Power / Peak Power	3000 W / 6000 W
Battery Specification	72 V 50 Ah
Top Speed	80 km/h
Range	80 km @ 45 km/h constant speed
Brakes (Front / Rear)	Hydraulic disc brake / Hydraulic disc brake
Charging Time	3-5 h
Safety Features	CBS
Suspension	Front hydraulic telescopic fork, rear dual spring shock

Download product image

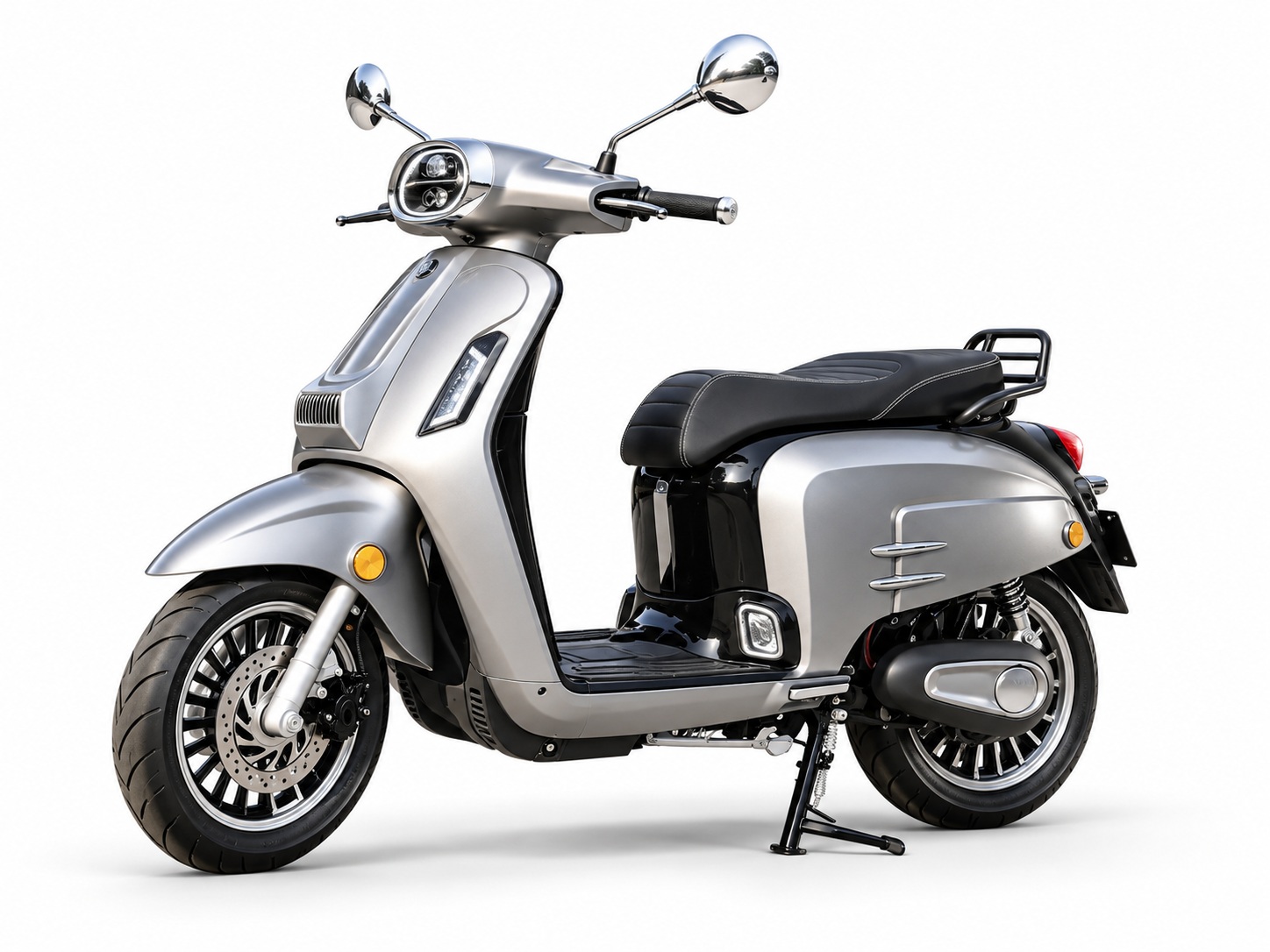

ELECTRIC MOTORCYCLE · Silver

ROMEO

5.8 kWPeak power

90 km/hTop speed

120 kmRange

1920×710×1150 mm

Full specifications

ROMEO specifications
Dimensions (L × W × H)	1920×710×1150 mm
Rated Power / Peak Power	3000 W / 5800 W
Battery Capacity	72 V 55 Ah
Top Speed	90 km/h (45 km/h available)
Economical Speed	50 km/h
Range	120 km
Tires (Front / Rear)	12-inch
Headlight Specification / Shape	Square LED lamp
Maximum Rated Load	232 kg (excluding battery)
Charging Specification	72 V 10 A pulse charging
Speed Modes	3-speed modes (High-Medium-Low)

Download product image

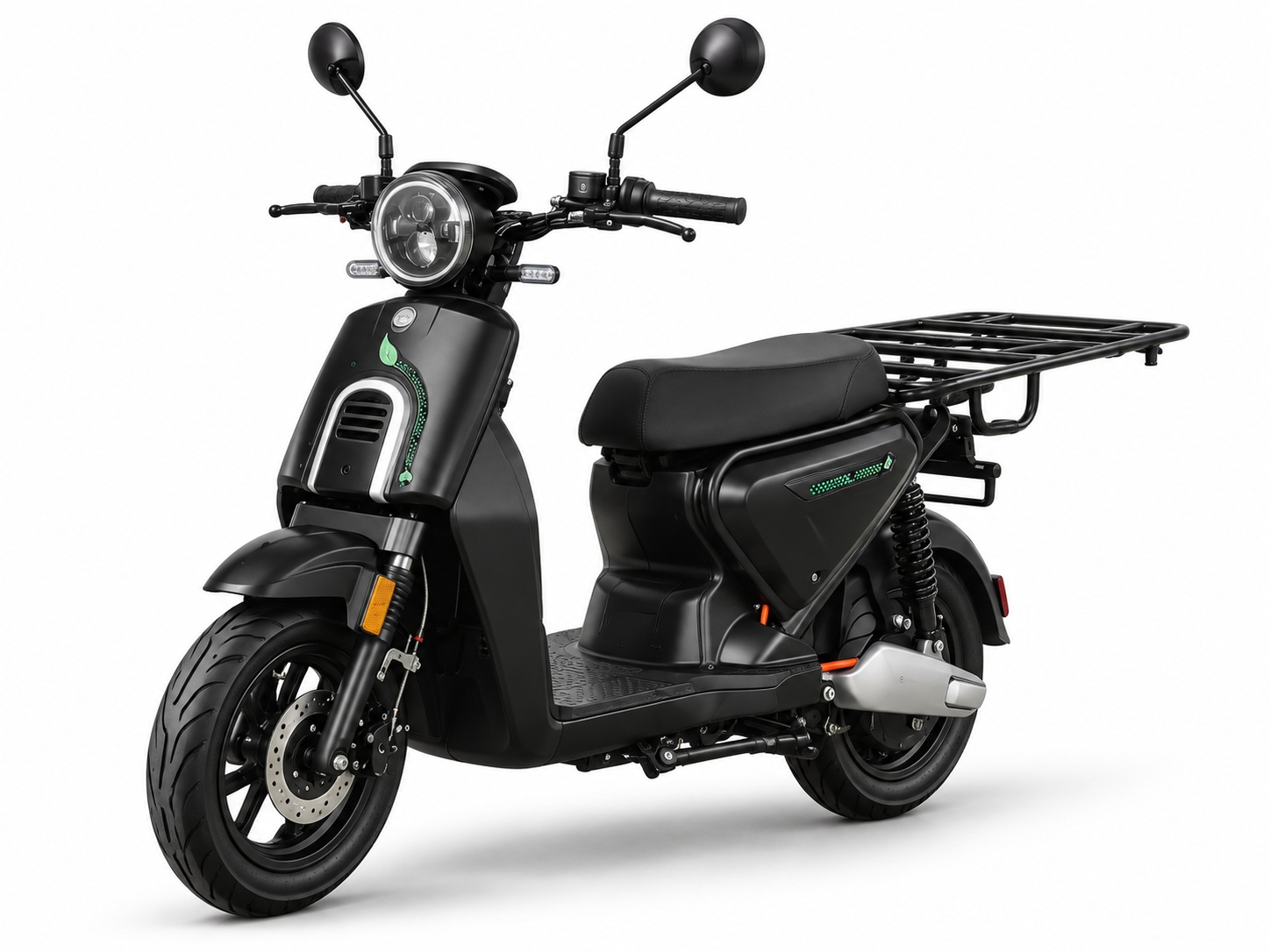

ELECTRIC MOTORCYCLE · Black (without cargo box)

C8s

5 kWPeak power

80 km/hTop speed

80 kmRange

1940×700×1160 mm·108 kg

Full specifications

C8s specifications
Dimensions (L × W × H)	1940×700×1160 mm
Wheelbase	1340 mm
Rated Power / Peak Power	2500 W / 5000 W
Battery Capacity	3600 Wh
Top Speed	80 km/h (EU speed limit)
Range	80 km @ 45 km/h constant speed
Brakes (Front / Rear)	Large disc hydraulic disc brake / Hydraulic disc brake
Tires (Front / Rear)	12 inch
Curb Weight	108 kg
Maximum Load Capacity	150 kg
Charging Time	3-5 h
Safety Features	CBS (standard)
Suspension (Front / Rear)	Front hydraulic telescopic fork, rear dual spring shock

Download product image

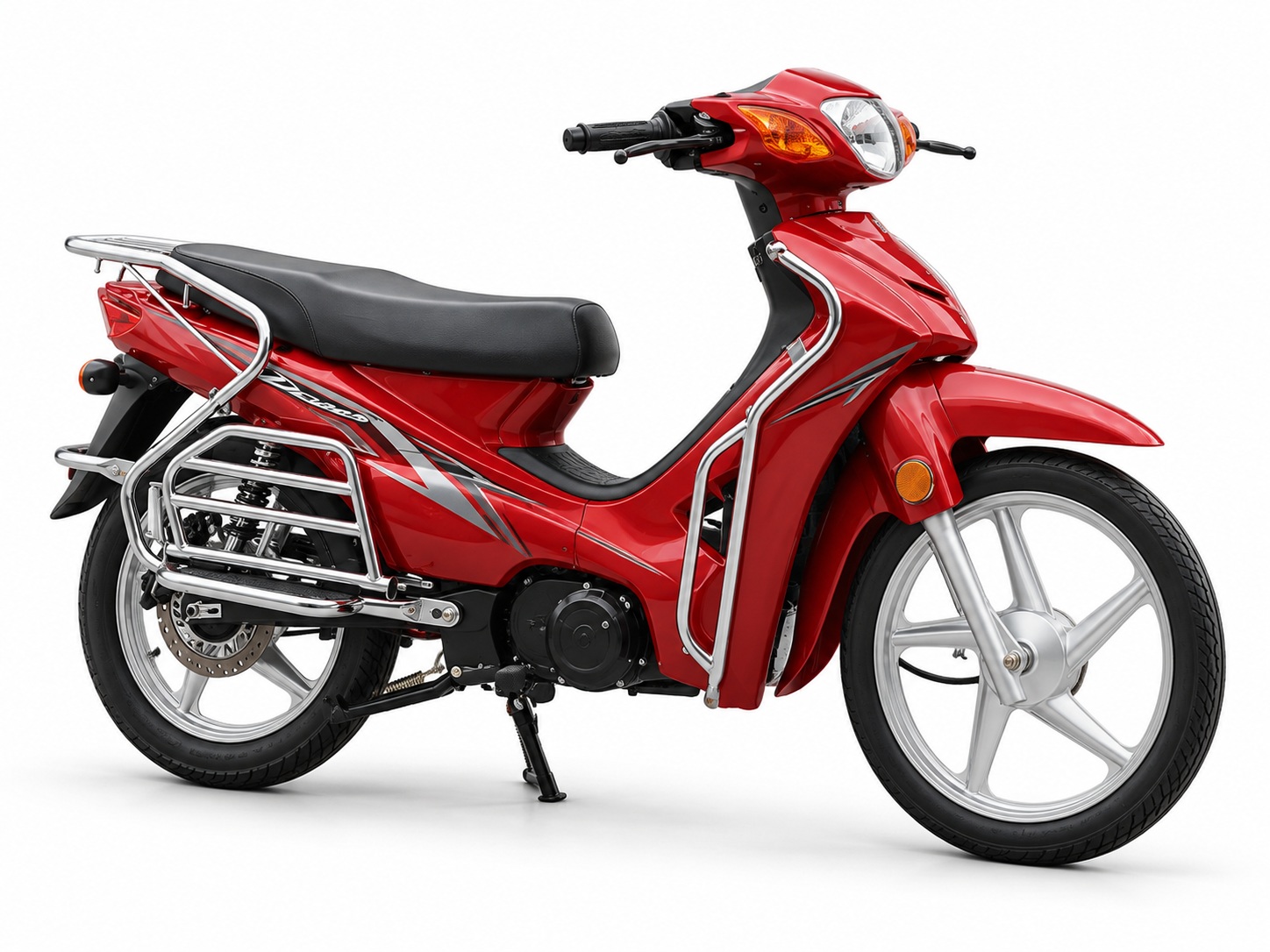

ELECTRIC MOTORCYCLE · Red

TBT

5 kWPeak power

85 km/hTop speed

80 kmRange

1960×805×1085 mm·120 kg

Full specifications

TBT specifications
Dimensions (L × W × H)	1960×805×1085 mm
Wheelbase	1260 mm
Rated Power / Peak Power	3500 W / 5000 W
Battery Specification	72 V 30 Ah
Top Speed	85 km/h
Range	80 km @ 45 km/h constant speed
Brakes (Front / Rear)	Hydraulic disc brake
Tires (Front / Rear)	2.50-17, Tubeless / 2.75-17, Tubeless
Curb Weight	120 kg
Maximum Load Capacity	150 kg
Charging Time	3-5 h
Controller Protection Rating	IPX7
Suspension (Front / Rear)	Conventional shock / Dual Spring Shock

Download product image

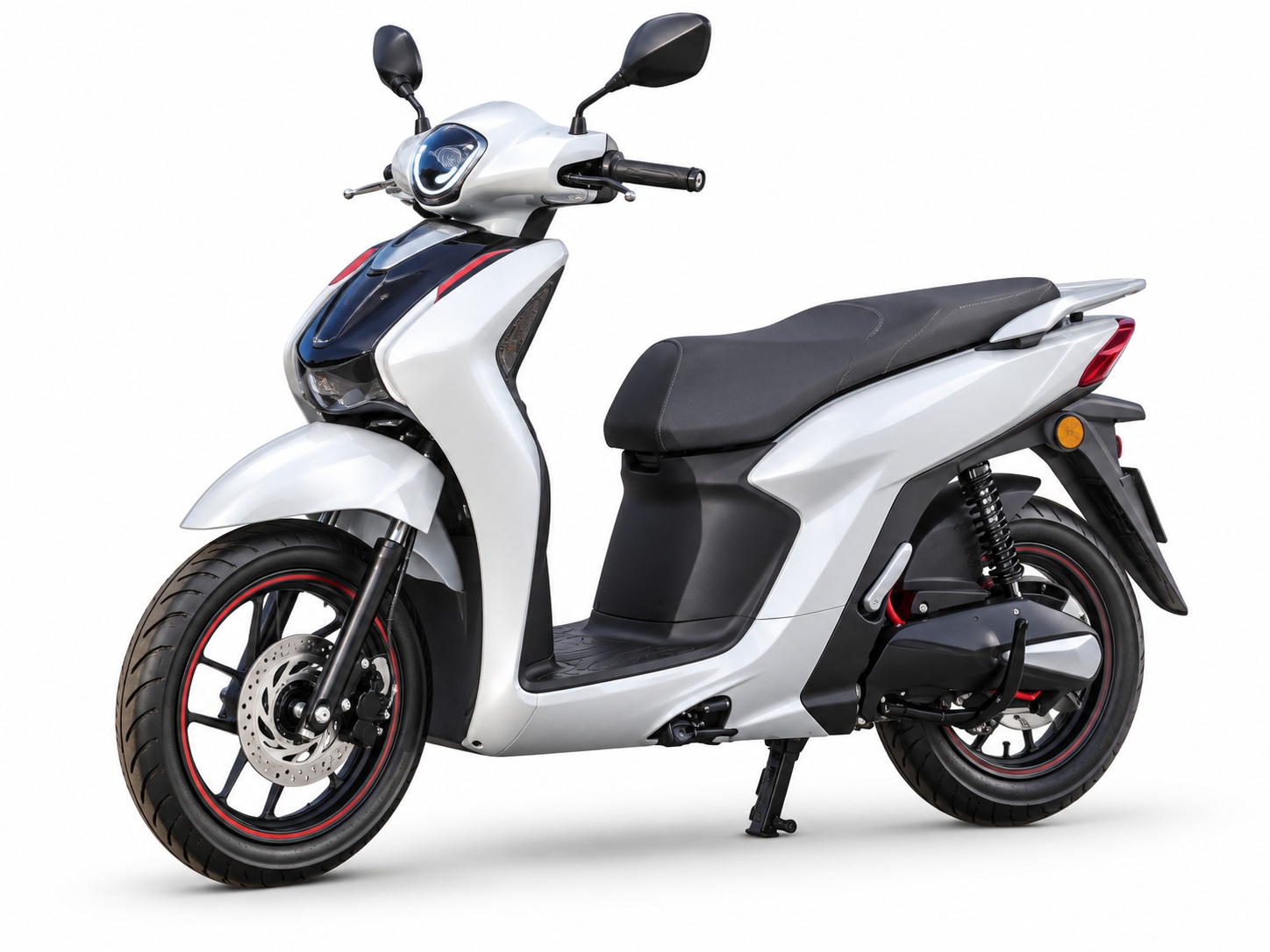

ELECTRIC MOTORCYCLE · Silver White

VESIN

4.9 kWPeak power

85 km/hTop speed

110 kmRange

1900×520×1100

Full specifications

VESIN specifications
Dimensions (L × W × H)	1900×520×1100
Starting Method	Key / NFC one-key start
Rated Power / Peak Power	3000 W / 4900 W
Battery Capacity	72 V 60 Ah (Dual 72 V 30 Ah battery packs)
Top Speed	85 km/h
Range	110 km
Front Shock Absorber	420 mm Hydraulic Damping Black Front Fork
Rear Shock Absorber	290 Reinforced Dual Rear Shocks (Fenglida)
Front Wheel Specification	14-1.85 aluminum vacuum wheel
Rear Wheel Specification	14-2.5 Hub-motor
Maximum Rated Load	264 kg
Tires	80/90-Yuanxing 14 tubeless tires

Download product image

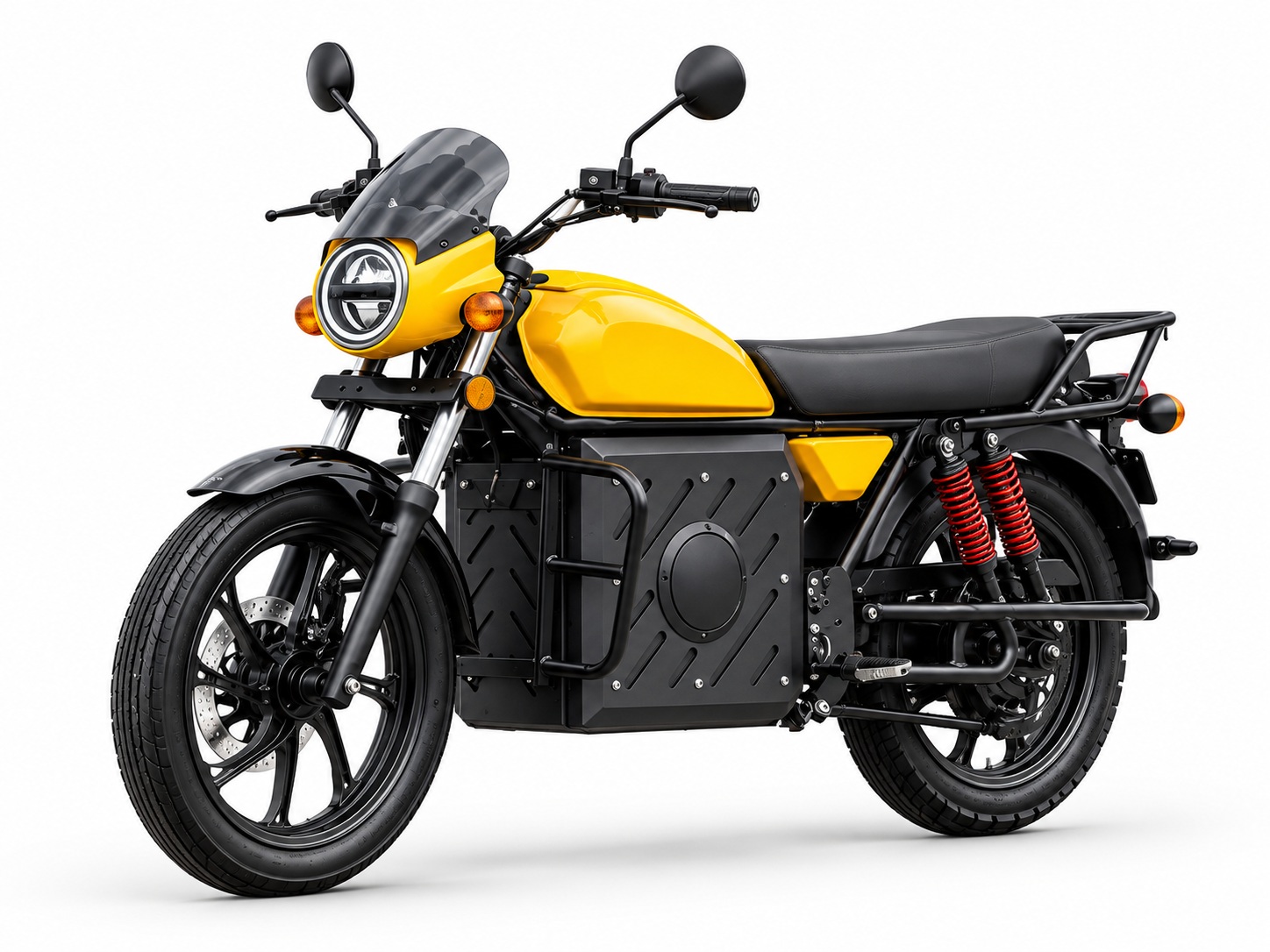

ELECTRIC MOTORCYCLE · Industrial Yellow

CG

6.5 kWPeak power

80 km/hTop speed

120 kmRange

2040×770×1050 mm·125 kg (including packaging)

Full specifications

CG specifications
Dimensions (L × W × H)	2040×770×1050 mm
Wheelbase	1390 mm
Rated Power	3.5 kW
Battery Specification	LFP 60 Ah
Top Speed	80 km/h
Range	80-120 km
Brakes (Front / Rear)	Disc brake / Disc brake
Tires (Front / Rear)	FR: 3.00-17; RR: 100/90-17
Weight Including Packaging	125 kg
Maximum Load Capacity	260 kg
Charging Time	3-5 h
Suspension (Front / Rear)	Hydraulic twin-spring

Download product image

展示图为概念示意。具体型号、参数及供货条件以双方确认资料为准。

ABOUT VELA HOLDINGS

连接能源与出行

Vela Holdings 主营电芯、电池与电动两轮车。我们面向经销商与企业采购，围绕产品选型与业务合作，开启每一次对话。

从一颗电芯，到每一次出发。

探索我们的产品业务

CELL

33140-15 Ah

40135-20 Ah

BATTERY PACK

TENET X12

NEO S1

NEO S3

RANGER M1

RANGER M2

Cannon G1

Cannon G2

Cannon G3

Cannon G6

SCOOTER

ELT

SPECTRE GEN 3

JARON

V4S

ADV

VISCOT

ROMEO

C8s

TBT

VESIN

CG

连接能源与出行

从一颗电芯，
到每一次出发。
